70V High Performance Mega Fuse

  • 1
  • 2
  • 3

Brand Name : Littelfuse

Model Number : 898

Certification : ROHS

Place of Origin : Guangdong,China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 15000pcs per month

Delivery Time : Stock available

Packaging Details : Carton

Ir : 60A to 500A

Ur : 70Vdc

Material : PPA,copper

For : Car,truck,Suv etc

Color : Black

Operating Temp. : -40 to 125℃

Contact Now

1)Description
Product name

70V High Performance Mega Fuse

Material Tin plated copper,PPA
Rated ampere 60A to 500A
Rated voltage 70Vdc
Interrupting rating 2500A@70VDC
Operating temp. range -40 to 125℃
Application Car,truck,Suv, Offroad vehicles,Bus etc.

70V High Performance Mega Fuse

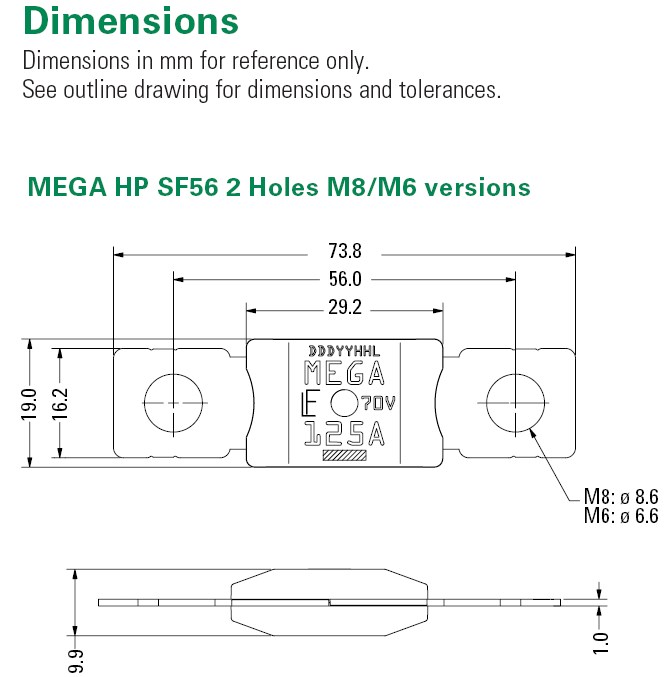

2)Size(mm)    2 Hole/ 1 Hole/ No Hole

70V High Performance Mega Fuse

70V High Performance Mega Fuse



3)Rating

Current Rating (A)  Test Cable size(mm³) Typ. Voltage Drop(mV) Typ. Cold Resistance(mΩ)
60 6 75.5 0.90
80 10 88.0 0.75
100 10 66.7 0.46
125 16 70.4 0.37
150 25 70.6 0.32
175 25 79.2 0.28
200 35 76.9 0.24
225 35 76.6 0.21
250 50 66.0 0.17
300 50 46.9³ 0.15
350 50 50.7³ 0.14
400 70 50.1³ 0.12
450 70 52.9³ 0.10
500 70 56.3³ 0.09





70V High Performance Mega Fuse

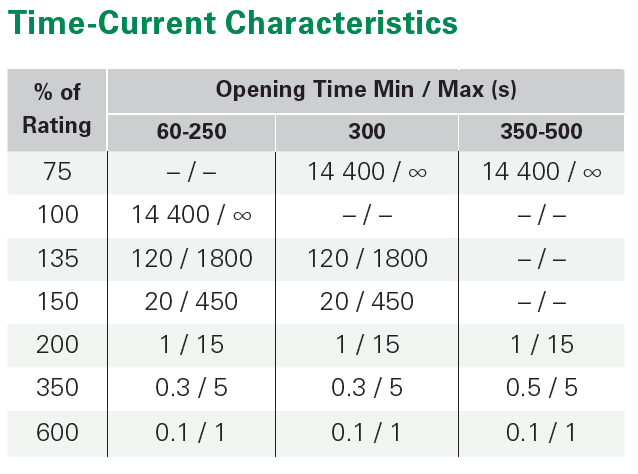

4)Time-current Characteristics



70V High Performance Mega Fuse





5)Description

The MEGA® 70V-SF56 High Performance (HP) Fuses iemploy diffusion pill technology to provide

predictable time-delayed circuit protection. These MEGA fuses are ideal for protecting batteries,

alternators, and heavy gauge wire harnesses that experience large inrushes of current. Use fuses

with ampere ratings of between 350 A and 500 A only for short circuit protection.


6)Features &Benefits

High-contrast ampere rating,stamp on housing aids,indentification

More than 1 Mohm open,state resistance
Available with two, one, or no mounting holes



7)Company

70V High Performance Mega Fuse70V High Performance Mega Fuse





8)Contact

Bonnie Chan
E-mail:admin@tianrui-fuse.com.cn
Mobile:+86-180 2522 7727
Whatsapp:+86-137 127 58342
Tel: +86-769-8239 8812
Skype: tianruifuse05
